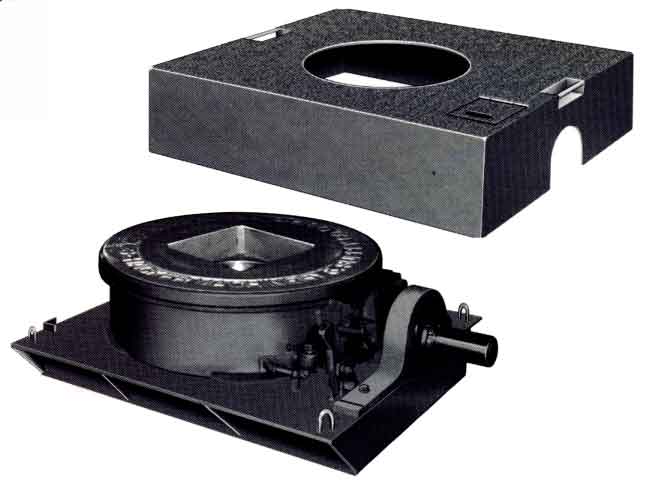

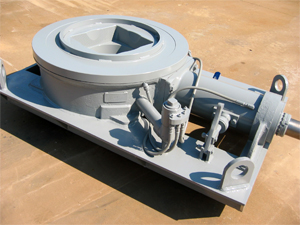

MODEL A-15-T is a 15 1/4" opening, extra heavy duty oilbath API rotary. Recommended
for drilling to 8,000 ft. with 31/2" drill pipe or servicing wells to 15,000 ft.

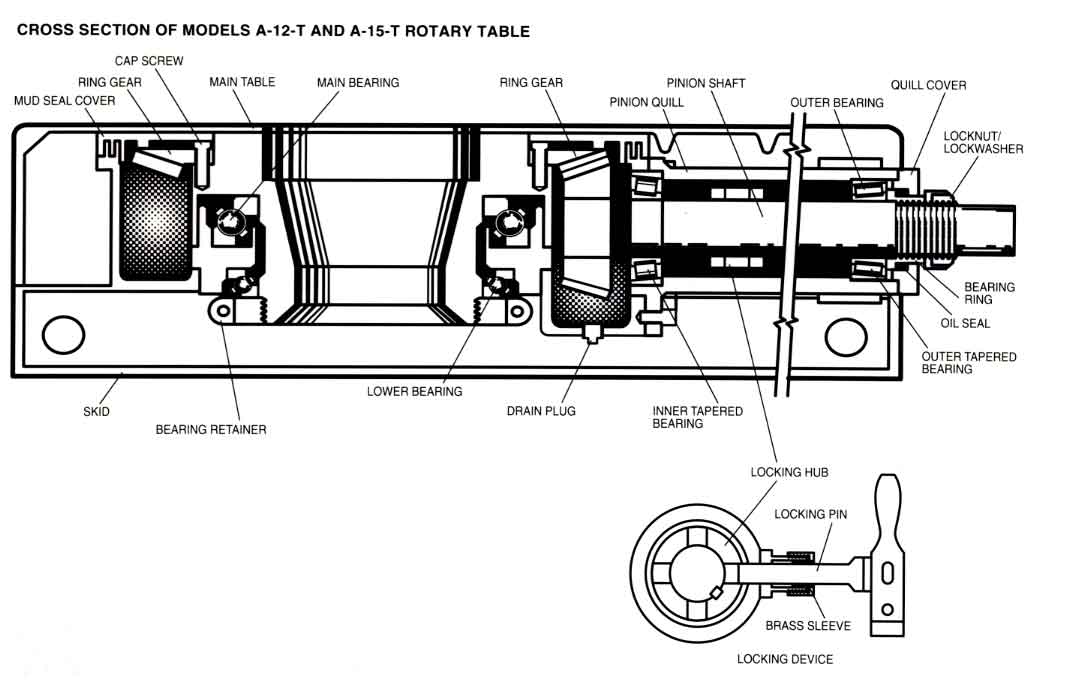

The main table bearing is a race hardened and ground ball thrust bearing and the
upthrust bearing is a hardened and ground, shielded upthrust ball bearing.
|
MODEL
|
A-15-T
|
|
Rated Load Capacity
|
140 tons 0 RPM
|
|
Table Opening (API)
|
15 1/4
|
|
Table Diameter
|
37 1/2"
|
|
Master Bushing
|
API Taper
|
|
Pinion Shaft
|
3 7/16"
|
|
Ratio Pinion to Rotary
|
3.44
|
|
Gear Pitch
|
1 3/4"
|
|
Pinion Shaft Bearing
|
Tapered Roller
|
|
Main Table Bearing
|
Ball Thrust
|
|
Upthrust Bearing
|
Ball Thrust with Adjustable Nut
|
|
Oil Reservoir, Capacity
|
6 gals.
|
|

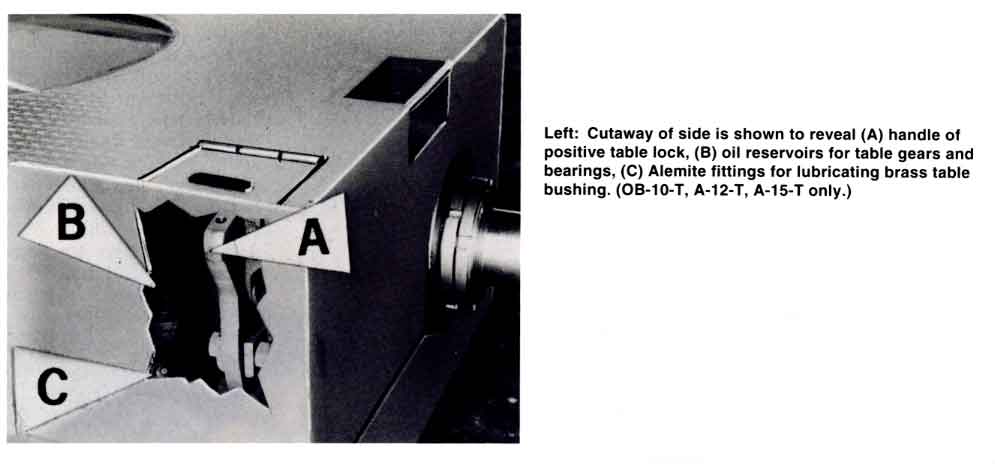

Positive Table Lock
|
Standard
|
|
Recommended Drilling Depth: 4 1/2" Drill Pipe
|
5000'
|
|
Overall Length, Min.
|
56"
|
|
Overall Width
|
41"
|
|
Overall Height
|
18"
|
|
Centerline of Table to Centerline of Sprocket
|
API Centers 22" to 44" *
|
|
Net Weight, Approx.
|
3400 lbs.
|
* Or Any Length Specified
|
|
