10" Rotary Table

MODEL OB-10-T is a compact unit, developed and designed at the request of drillers who need an economical, high speed rotary that will handle servicing jobs to 7,000 ft. or drill to 2,200 ft. with ease.

MODEL
OB-10-T
Rated Load Capacity
90 tons 0 RPM
Table Opening (API)
9 1/2
Table Diameter
28 1/2"
Master Bushing
None Required
Pinion Shaft
2 7/16"
Ratio Pinion to Rotary
3.381
Gear Pitch
2.83
Pinion Shaft Bearing
Tapered Roller
Main Table Bearing
Ball Thrust
Upthrust Bearing
Brass Adjustable Nut
Oil Reservoir, Capacity
2.2 gals.
Positive Table Lock
Optional
Recommended Drilling Depth: 4 1/2" Drill Pipe
2200'
Overall Length, Min.
44"
Overall Width
32"
Overall Height
15"
Centerline of Table to Centerline of Sprocket
API Centers 28 1/2" to 44" *
Net Weight, Approx.
1610 lbs.

* Or Any Length Specified

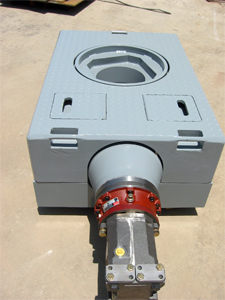

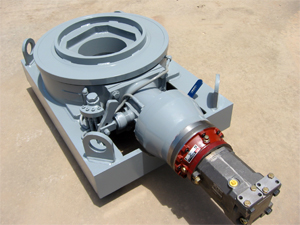

Click on the images above for a larger view.
